TECHNICAL DETAILS

Totem LED Puck System

Totem utilizes threaded DC power connections and a set of aluminum
shade couplers to suspend the lamp assembly.

Dim-to-Warm LED

Equipped with dim-to-warm LED technology, the Totem Collection
transforms as light levels are reduced, the color temperature becomes
progressively warmer, creating a rich, inviting ambiance

4 Foundation Shades

The Totem System is based on four hand-crafted Opal glass shades.

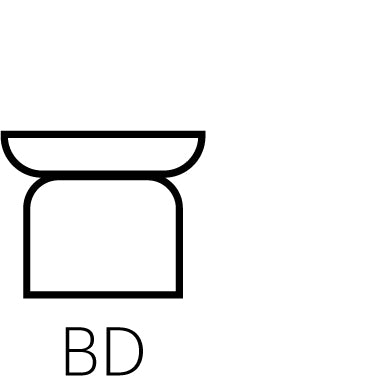

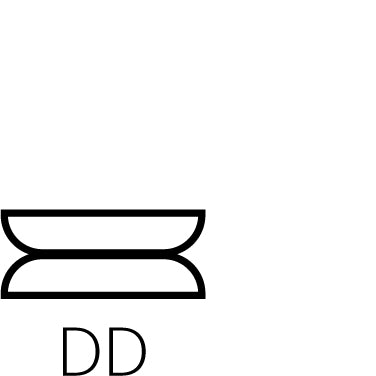

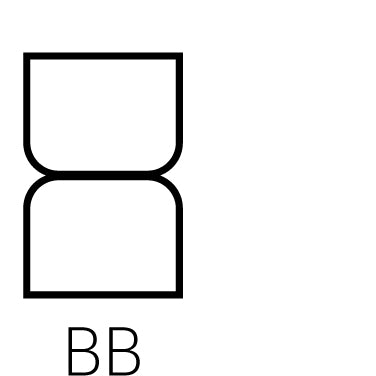

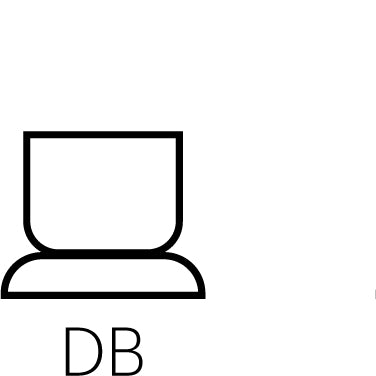

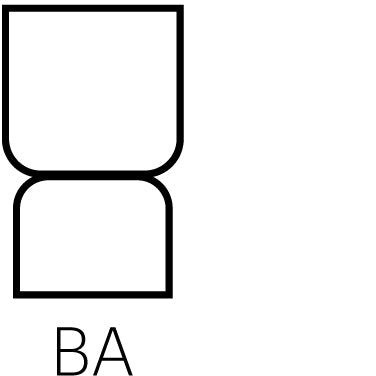

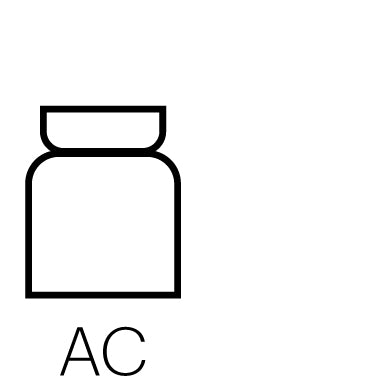

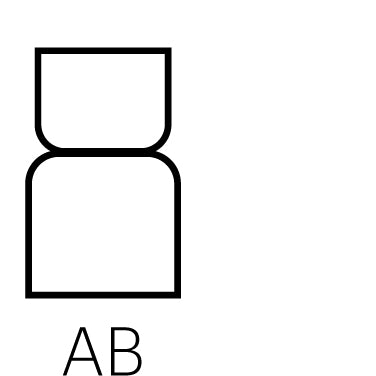

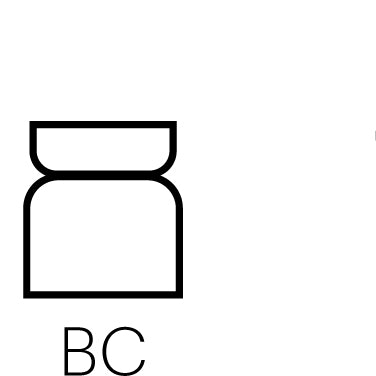

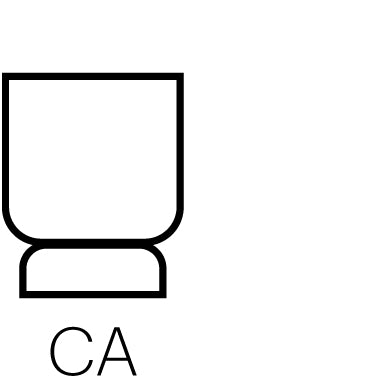

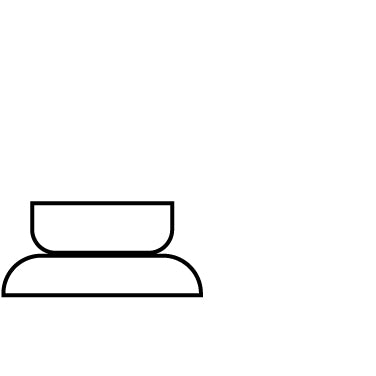

20 Shade Combinations

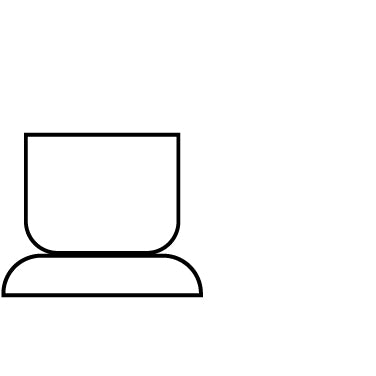

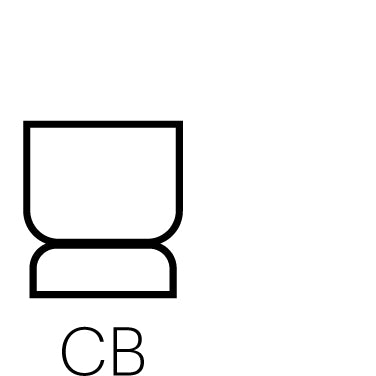

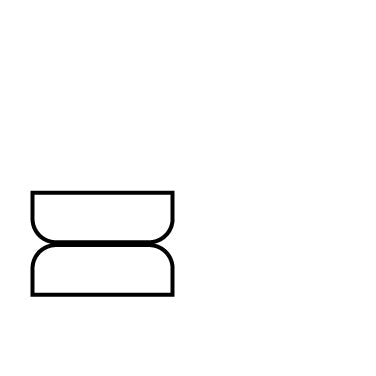

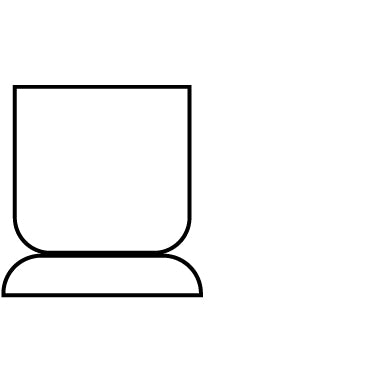

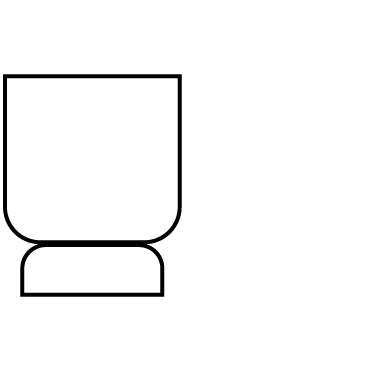

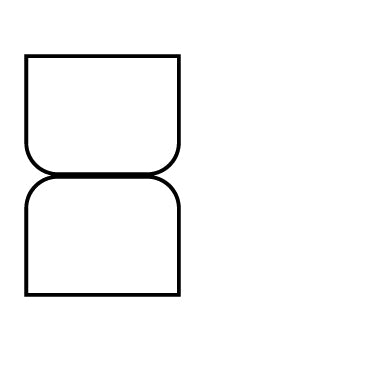

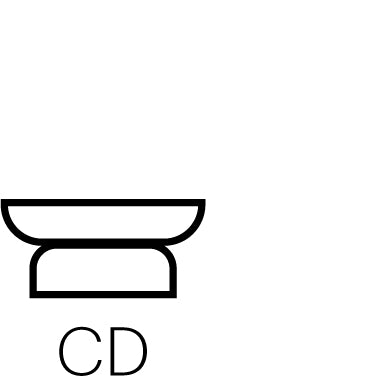

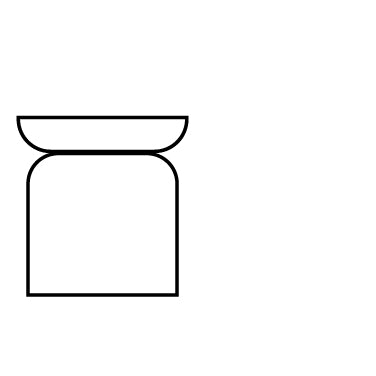

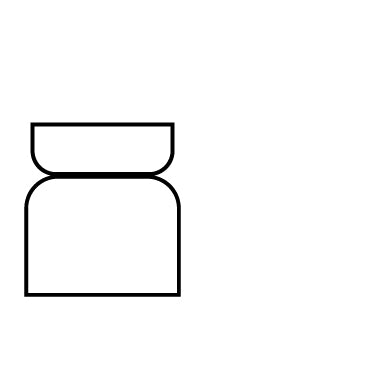

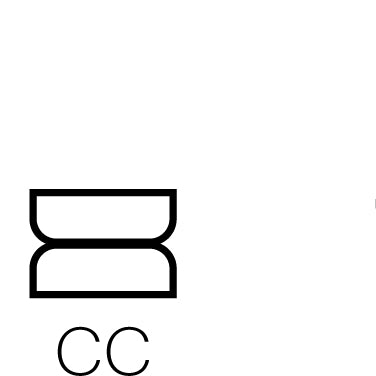

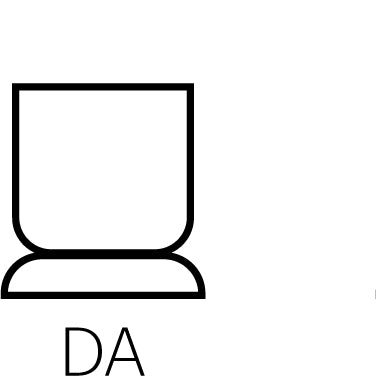

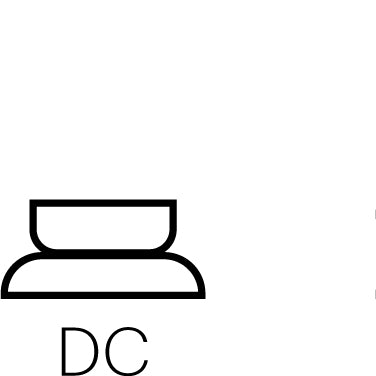

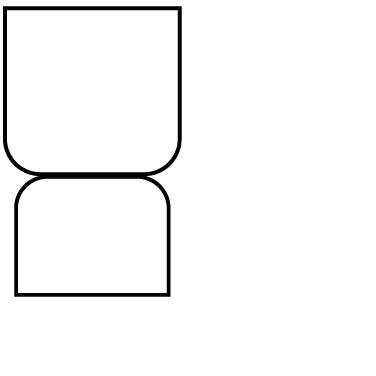

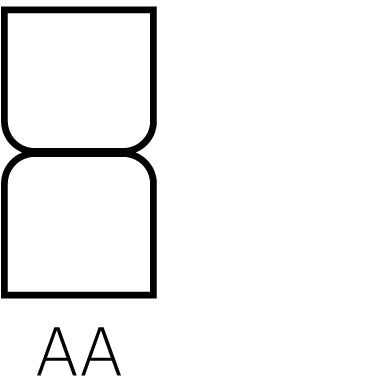

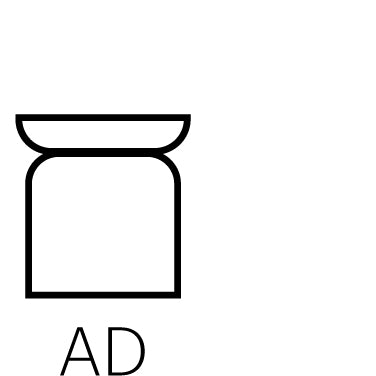

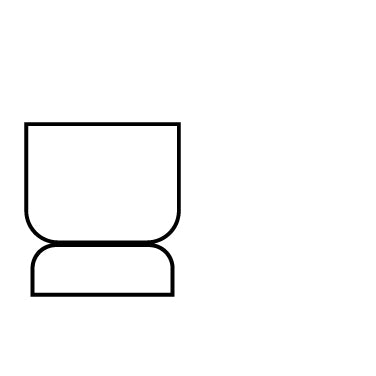

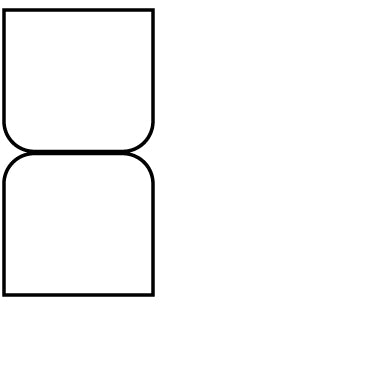

select from 4 shade sizes in descending order (A,B,C,D) which
can be employed in both single and double shade combinations
to create up to 20 unique models.

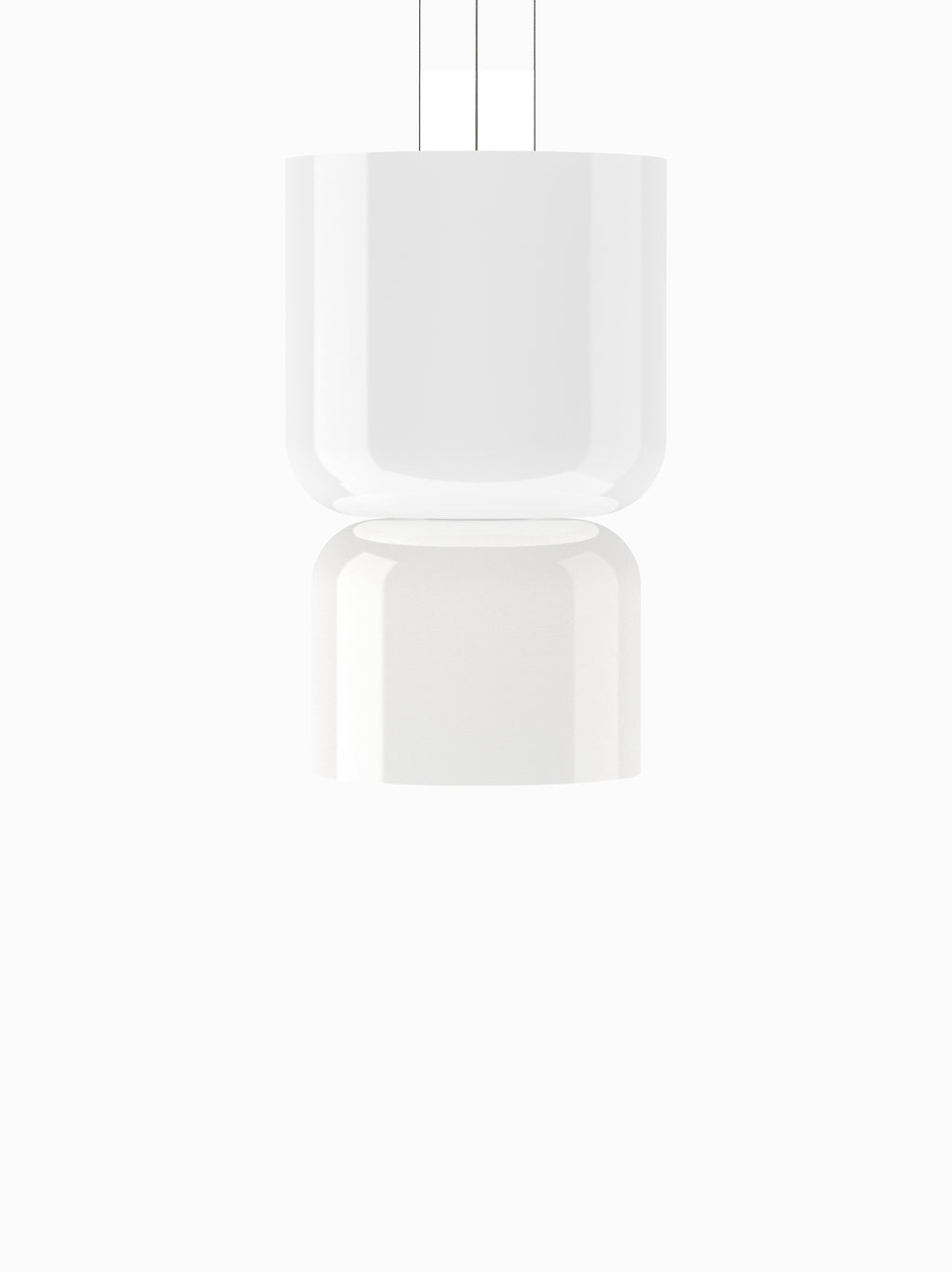

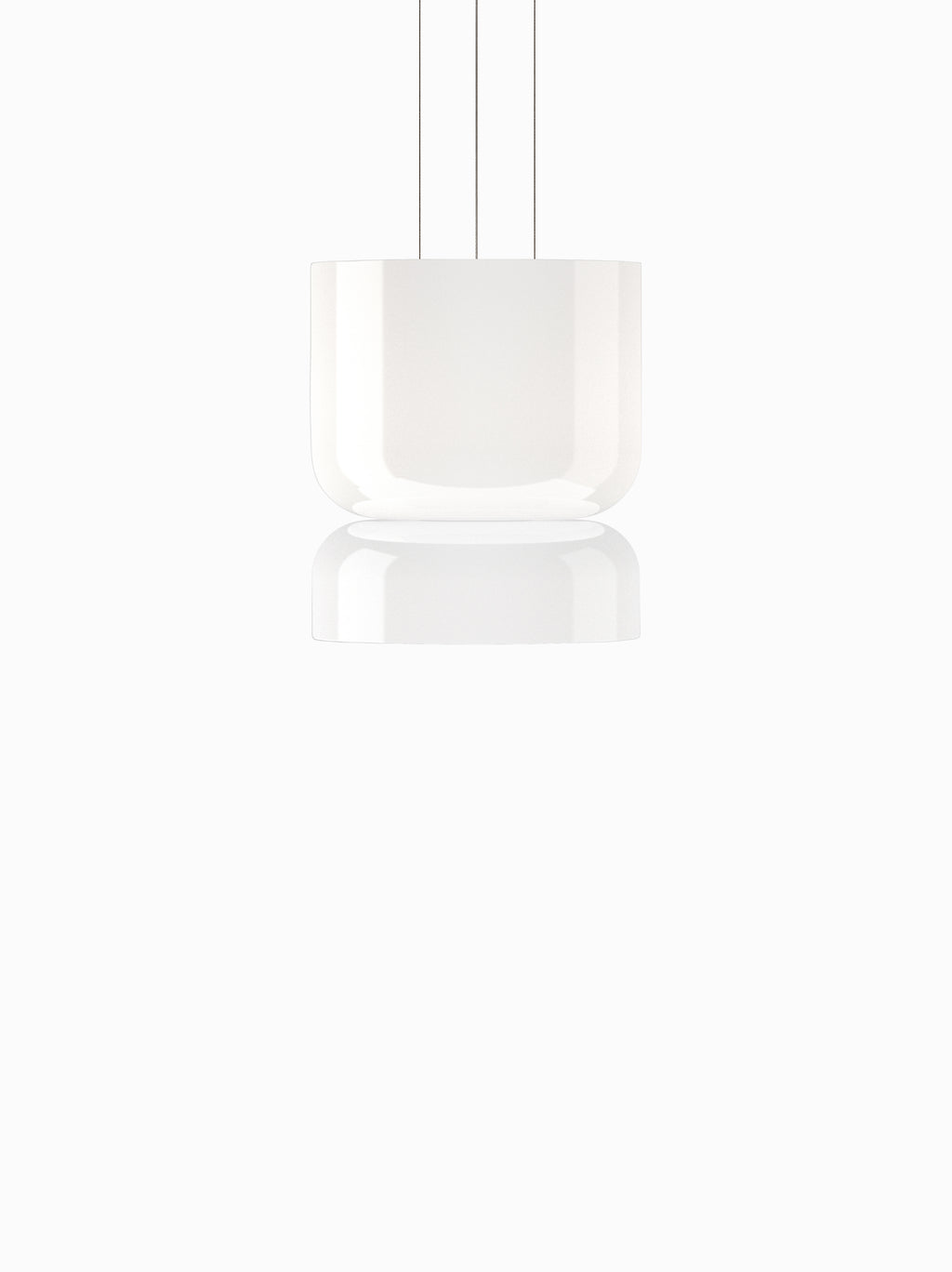

Totem Pendant

Totem Pendant

Up/Down

by Pablo Studio, 2023

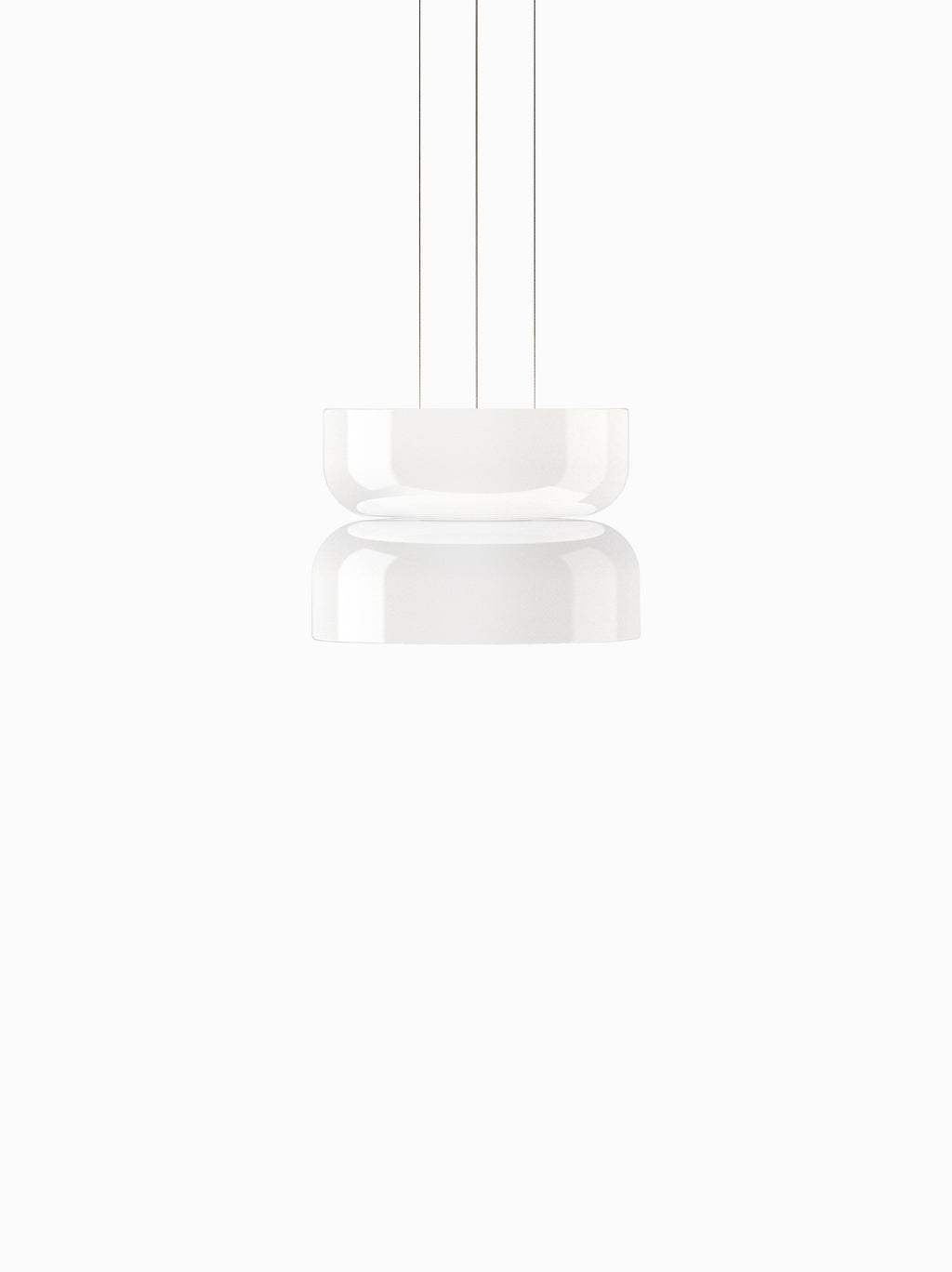

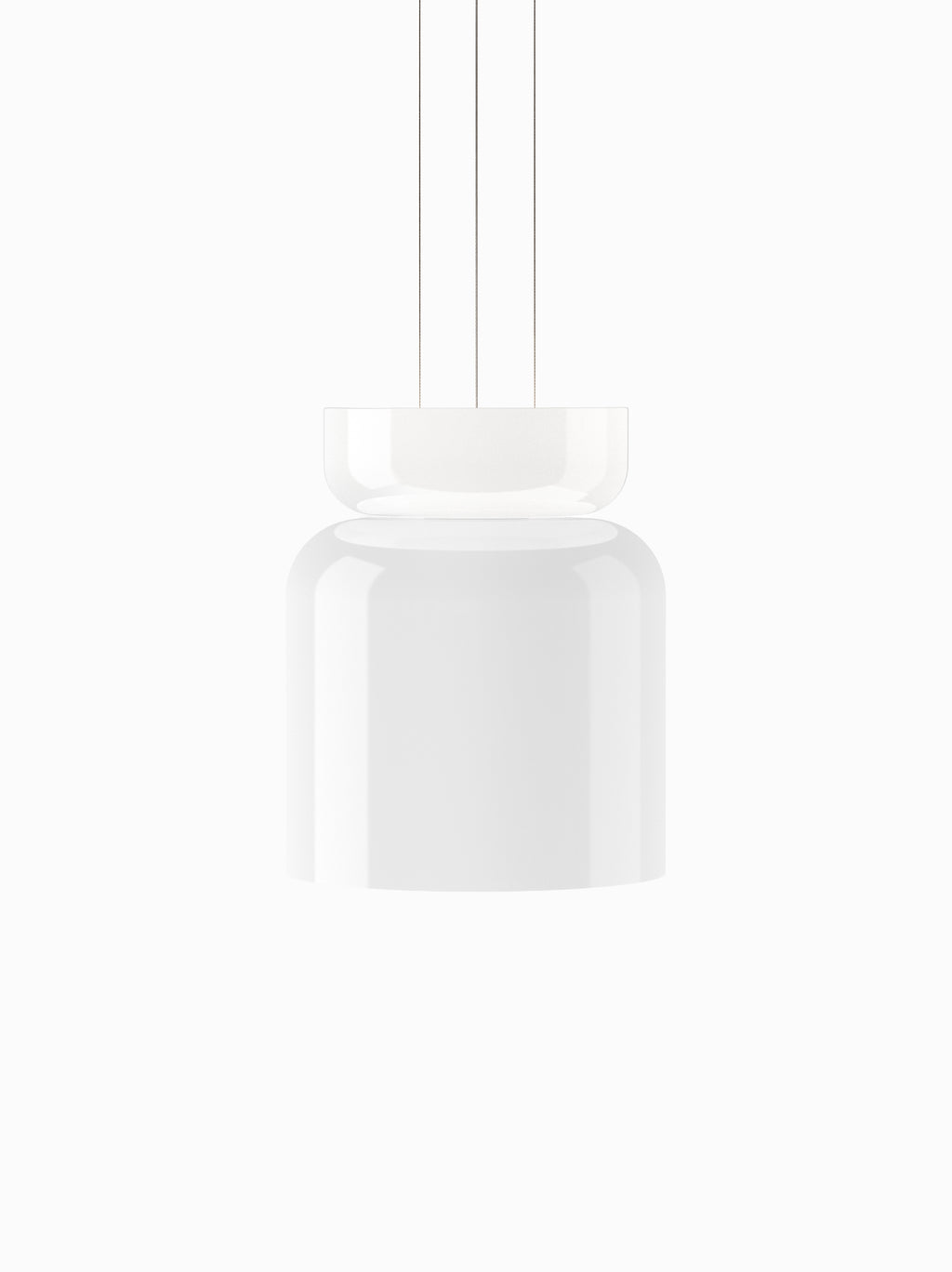

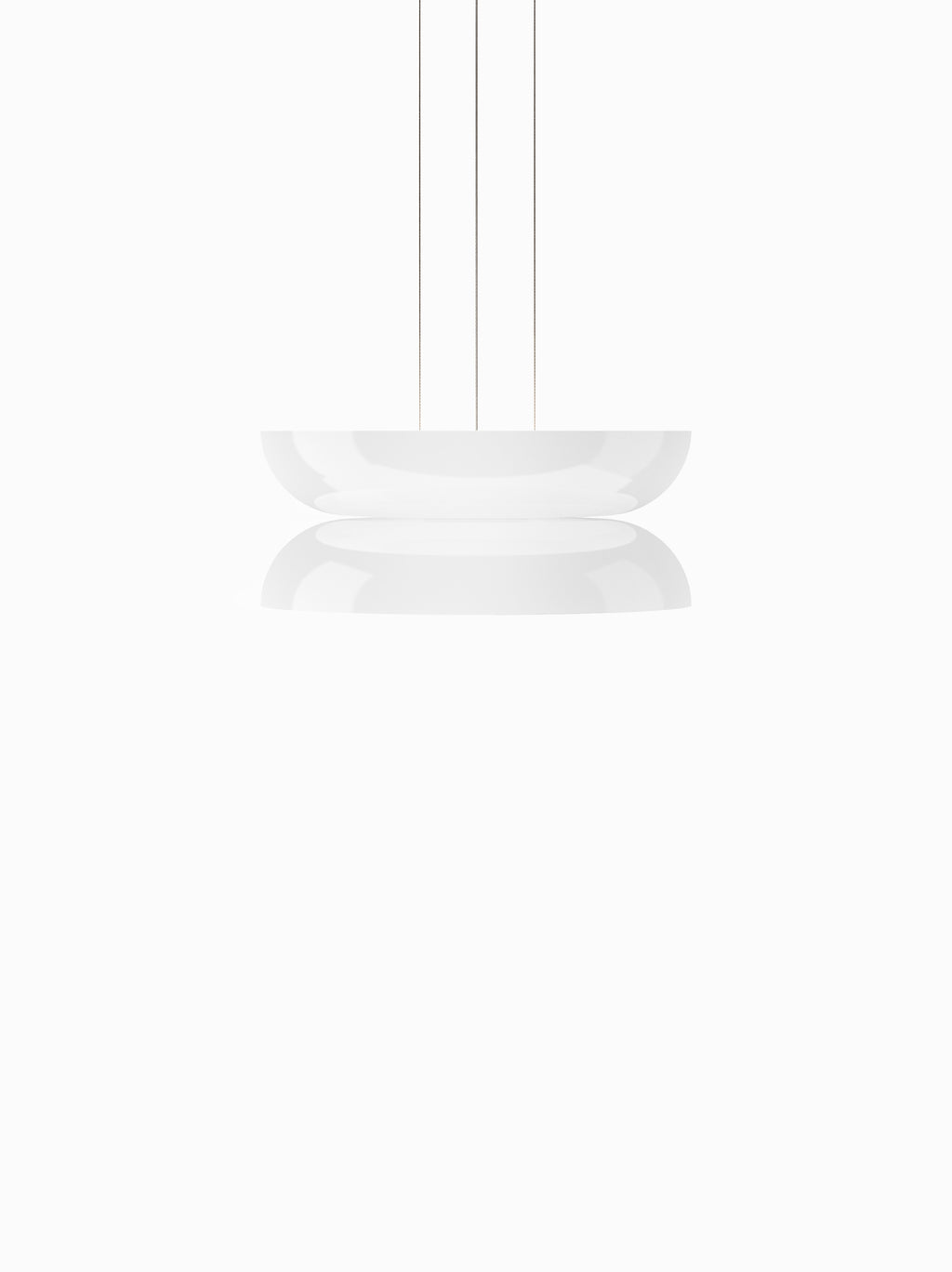

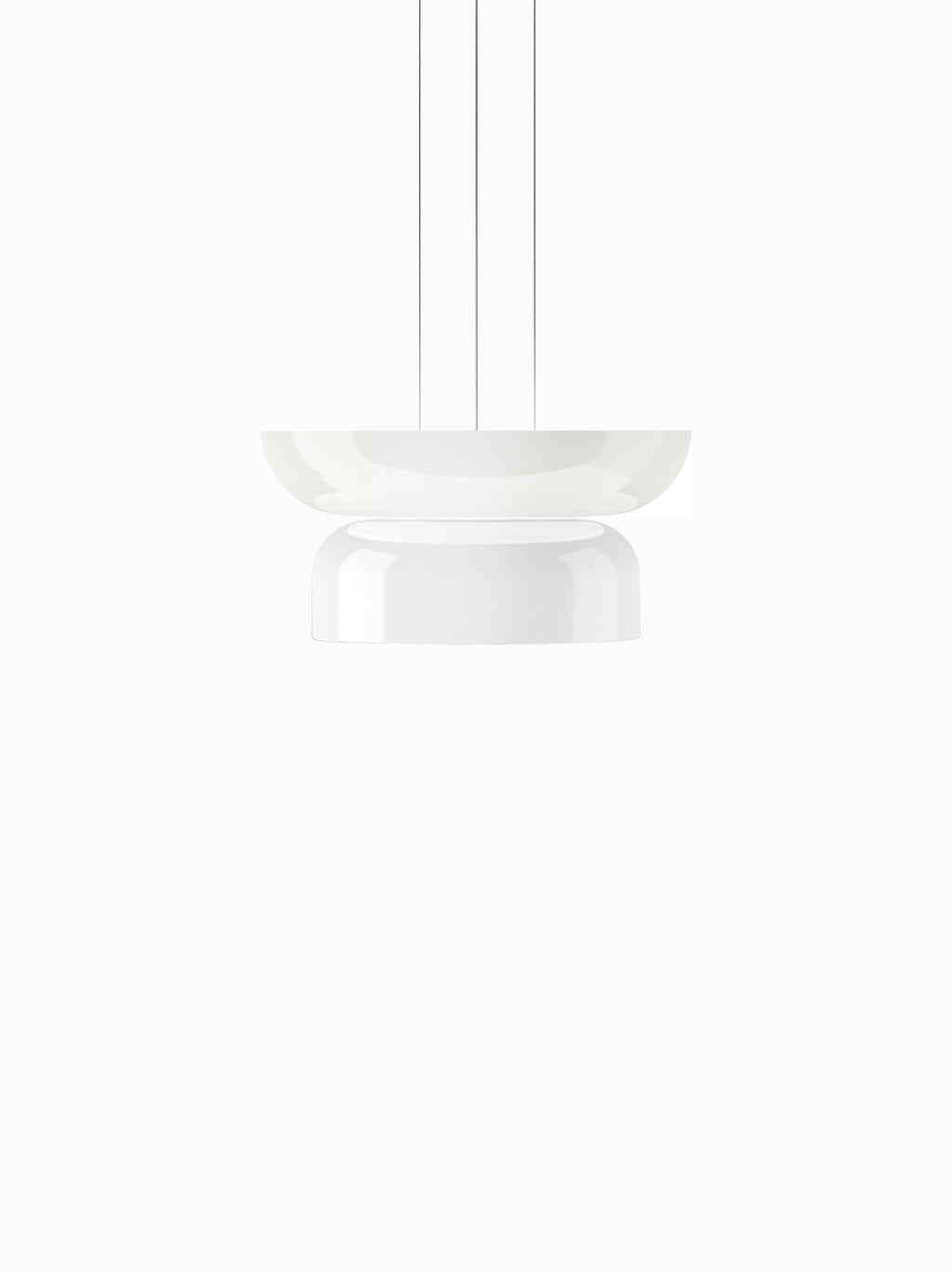

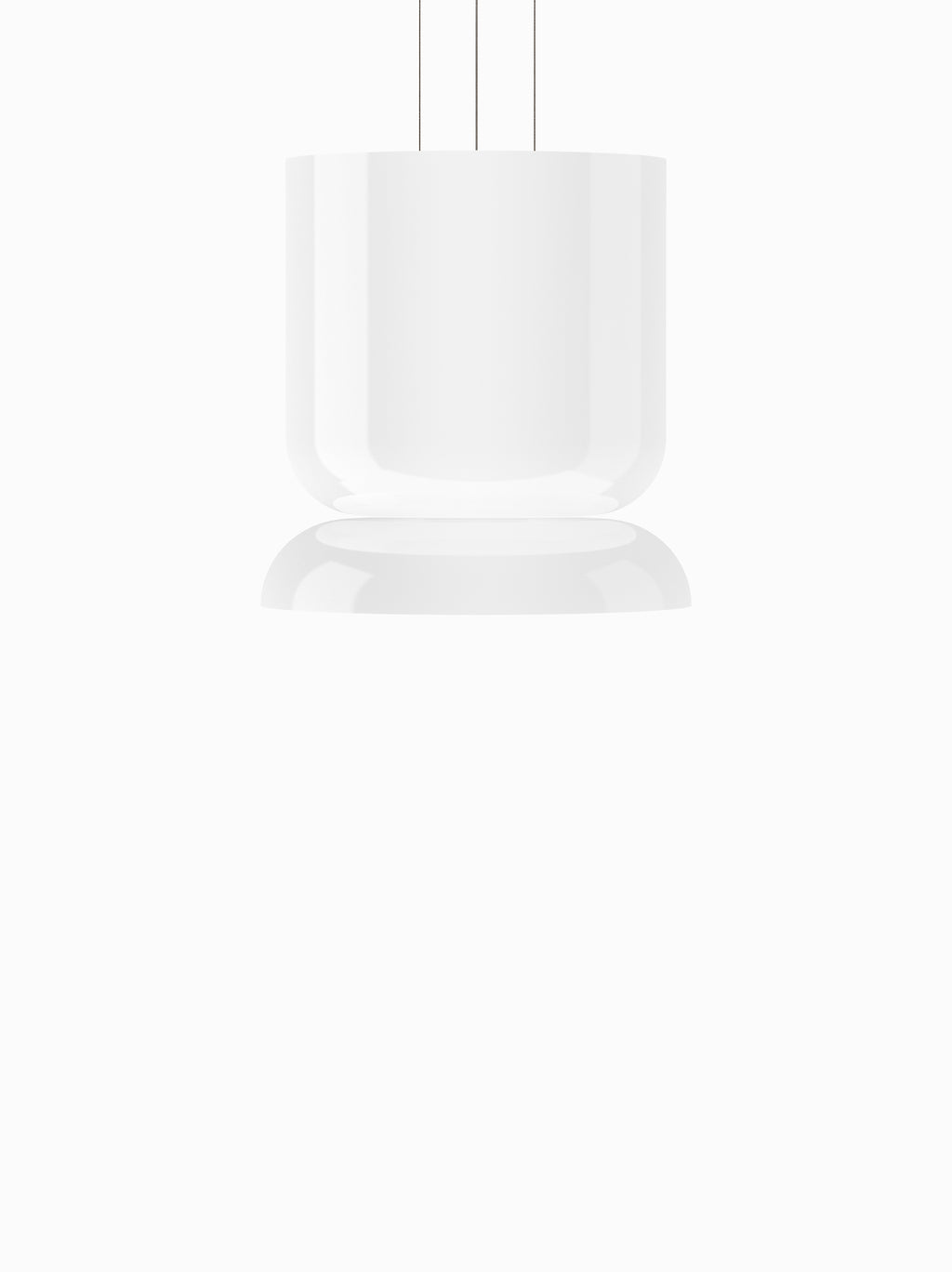

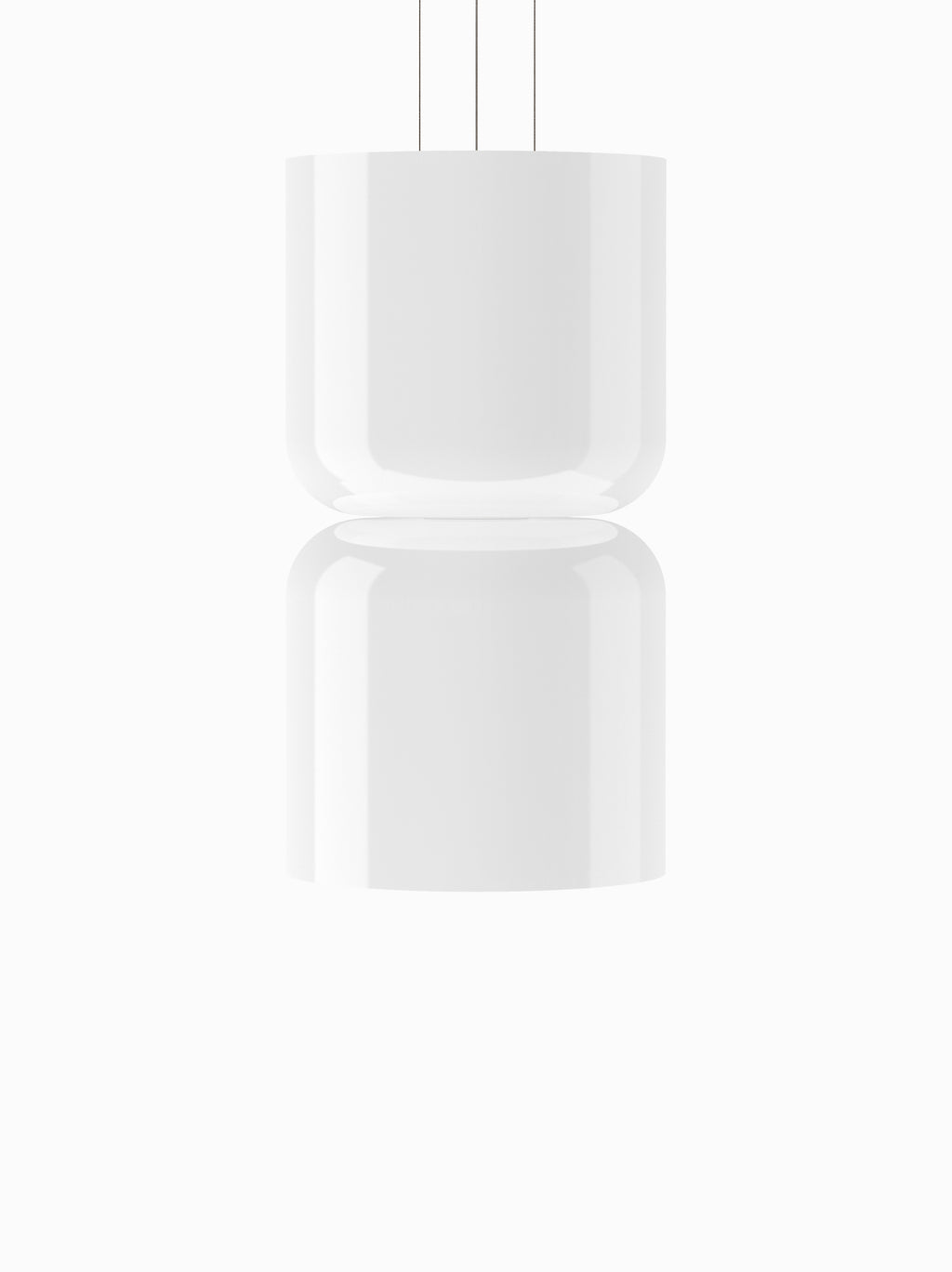

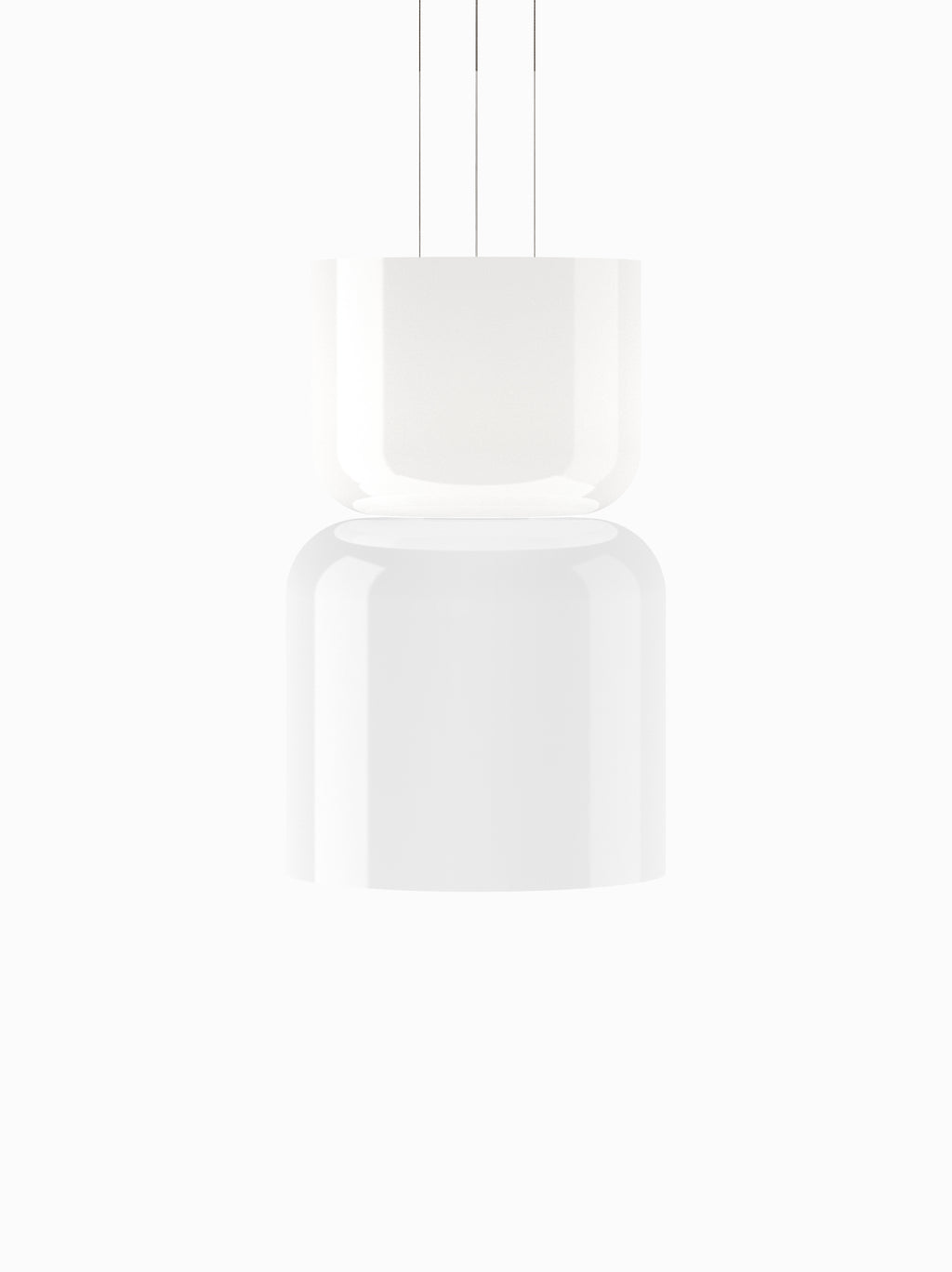

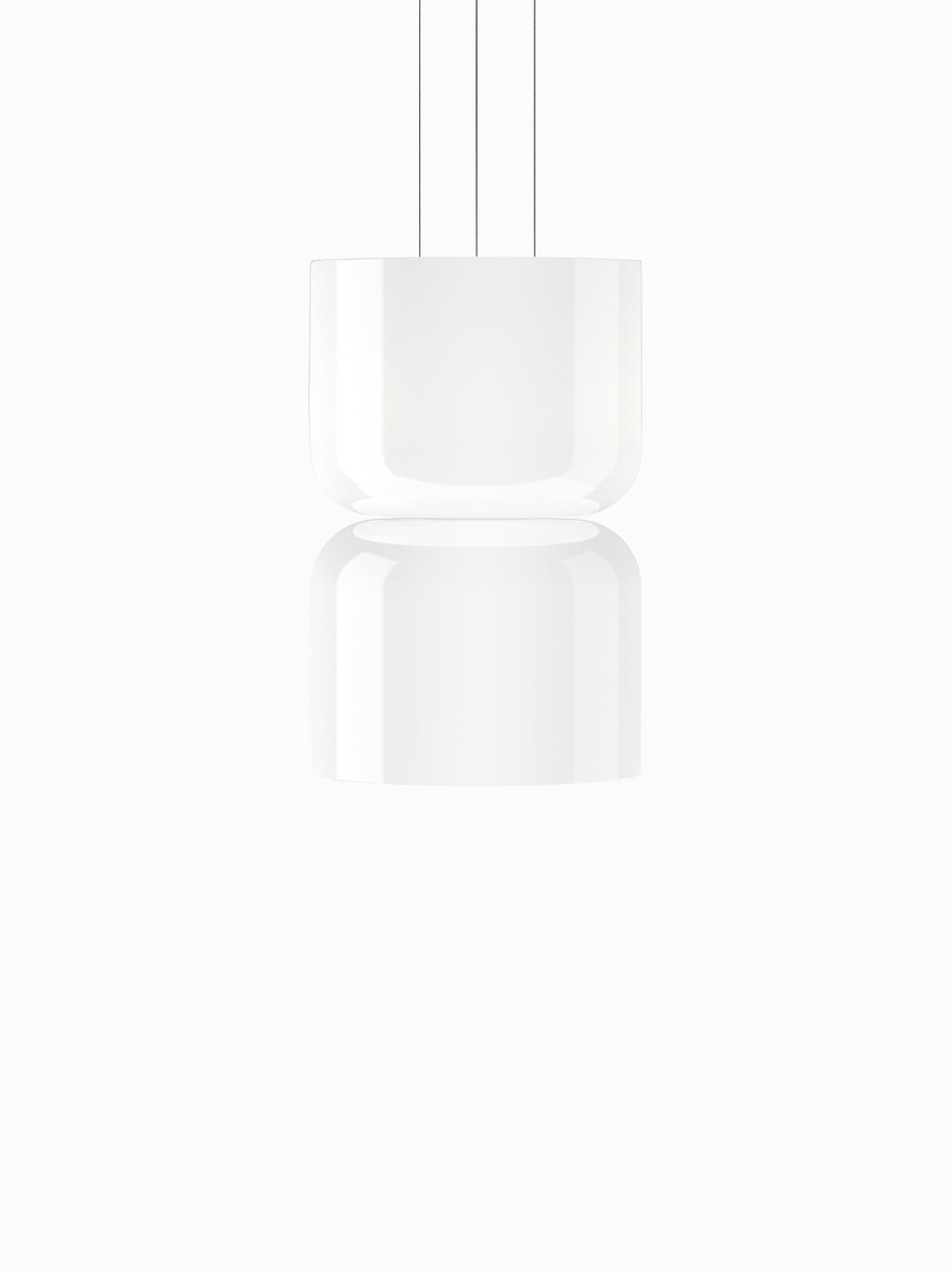

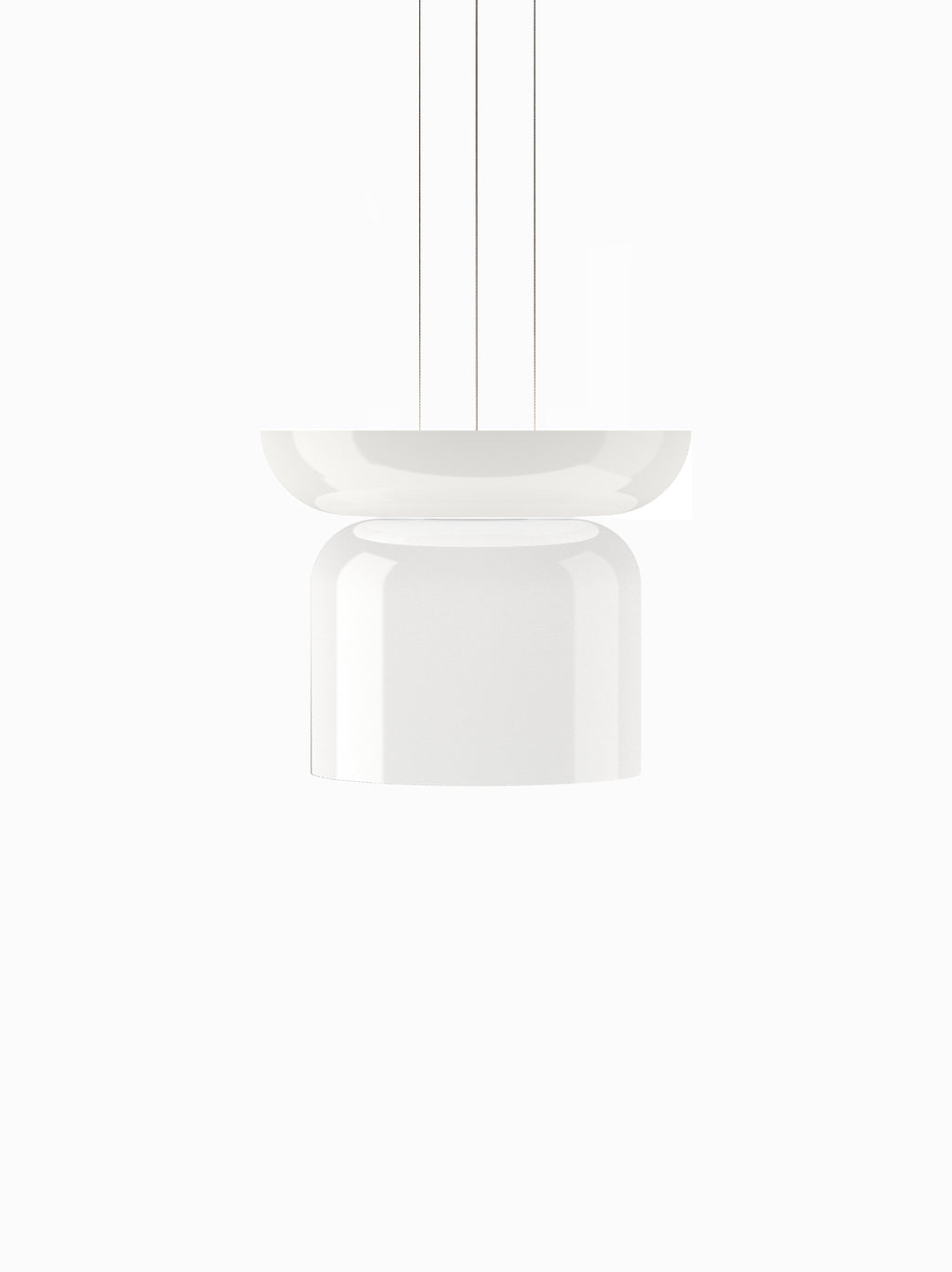

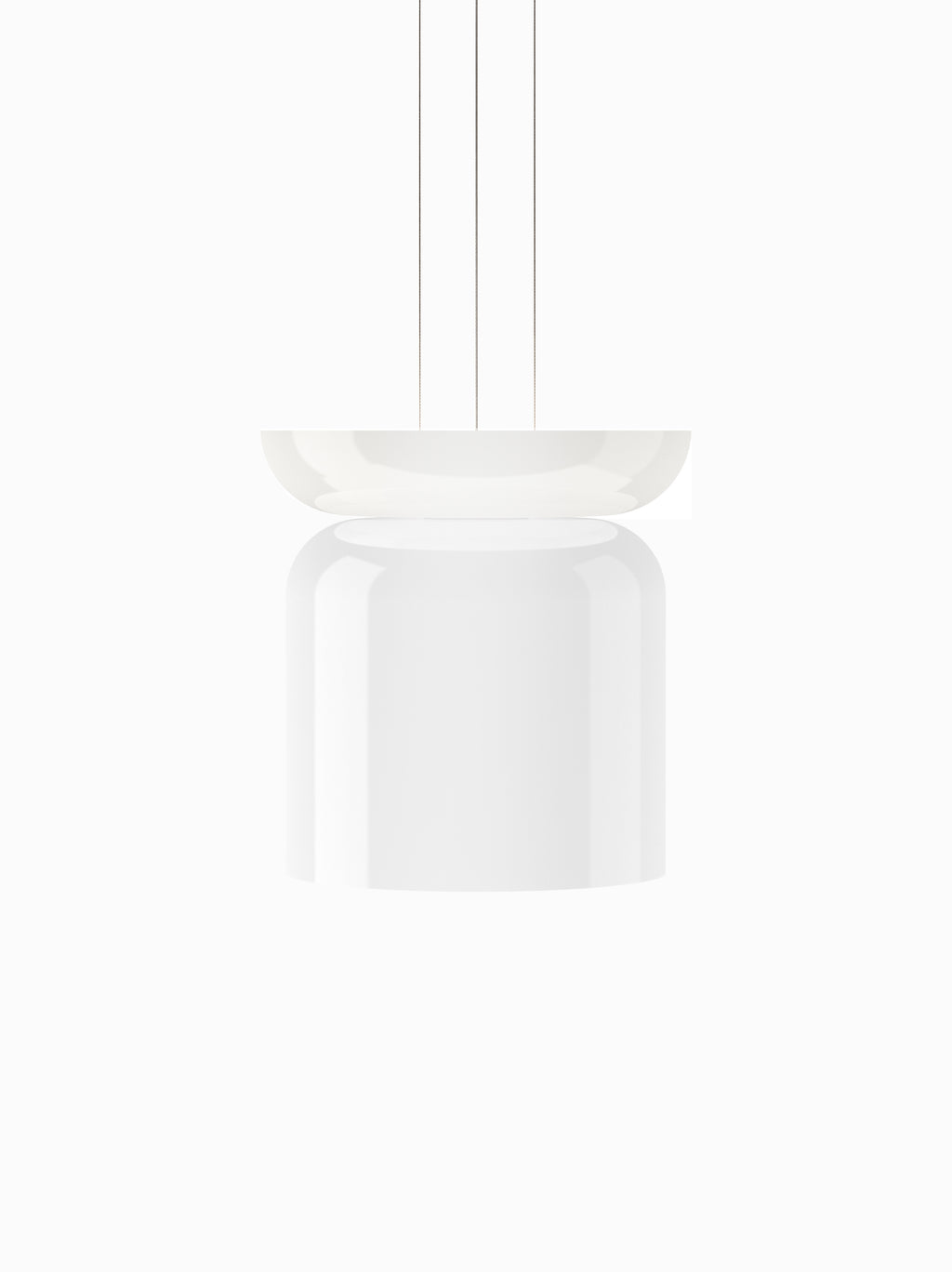

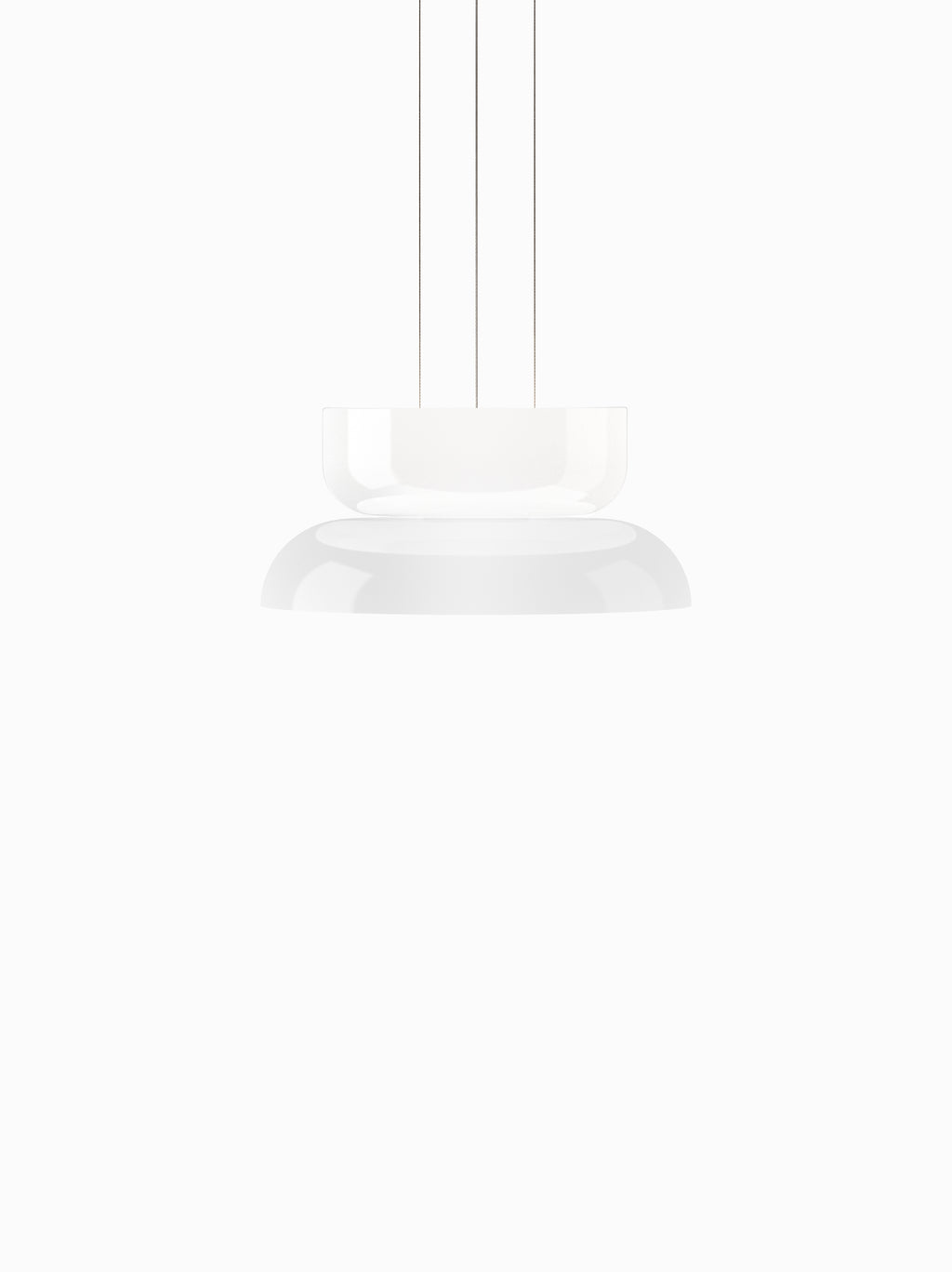

Totem is a classic and highly versatile pendant LED lighting system comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space. Users can select from 4 shade sizes in descending order (A,B,C,D) which can be employed in both single and double shade combinations to create up to 20 unique models to satisfy both direct and indirect illumination needs. Totem is available in 3 fully dimmable LED Light engine combinations: Up/Down Light, Down Light, and Flush Down Light with each shade housing its own light engine. This flexibility allows for creating stunning groupings that emanate from ceiling down to pendant height across multiple sizes and shapes and best suited over dining areas, entry foyers and hallway ceiling scenarios. Inspiration behind the design was to celebrate random combinations and encouraging specifiers to create personalized lighting solutions unique to their own spaces.


AWARDS: 2024 Archiproduct Design Award: Concept and Design

Shades

Finish

In stock
$1,895.00

Jump to SPECIFICATIONS for full technical info.
  • Technical Details
    Totem LED Puck System

    Totem utilizes threaded DC power connections and a set of aluminum
    shade couplers to suspend the lamp assembly.

    Dim-to-Warm LED

    Equipped with dim-to-warm LED technology, the Totem Collection
    transforms as light levels are reduced, the color temperature becomes
    progressively warmer, creating a rich, inviting ambiance

    4 Foundation Shades

    The Totem System is based on four hand-crafted Opal glass shades.

    20 Shade Combinations

    select from 4 shade sizes in descending order (A,B,C,D) which
    can be employed in both single and double shade combinations
    to create up to 20 unique models.
  • Specifications
    Specifications

    Materials: Hand-blown Opal Glass, Steel Canopy.

    Voltage 120 V (100–277 V 50/60 Hz available on request)

    Power 13 W or 18 W (UpDown Light)

    Light source High output LED array

    CCT 2700–2200 K DTW (Note: 3000 K/3500 K models available on request)

    Lumens 1400 lm or 1800 lm total (1400 down/400 up)

    Efficacy 108 lm/W or 100 lm/W (UpDown)

    CRI 90

    Dimming Full–range dim

    Controls TRIAC/ELV, 0–10 V (on request), Dali (on request)

    LED lifespan 50 K hours

    Cord length 10 ft (305 cm) (Field cuttable)

    Certifications ETL, CE

  • Features

    Dim-to-Warm LED

    Direct + Indirect Illumination

    Fully dimmable.

    Glare-free illumination.

    4 Interchangeable Shade Options (up to 20 combinations)

  • DOWNLOADS

    Spec Sheet

    Download PDF

    User Guide

    Download PDF

    IES

    Download ZIP

    Revit (Totem Pendant UpDown)

    Download RFA

    Revit (Downlight A)

    Download RFA

    Revit (Downlight B)

    Download RFA

    Revit (Downlight C)

    Download RFA

    Revit (Downlight D)

    Download RFA
