TECHNICAL DETAILS

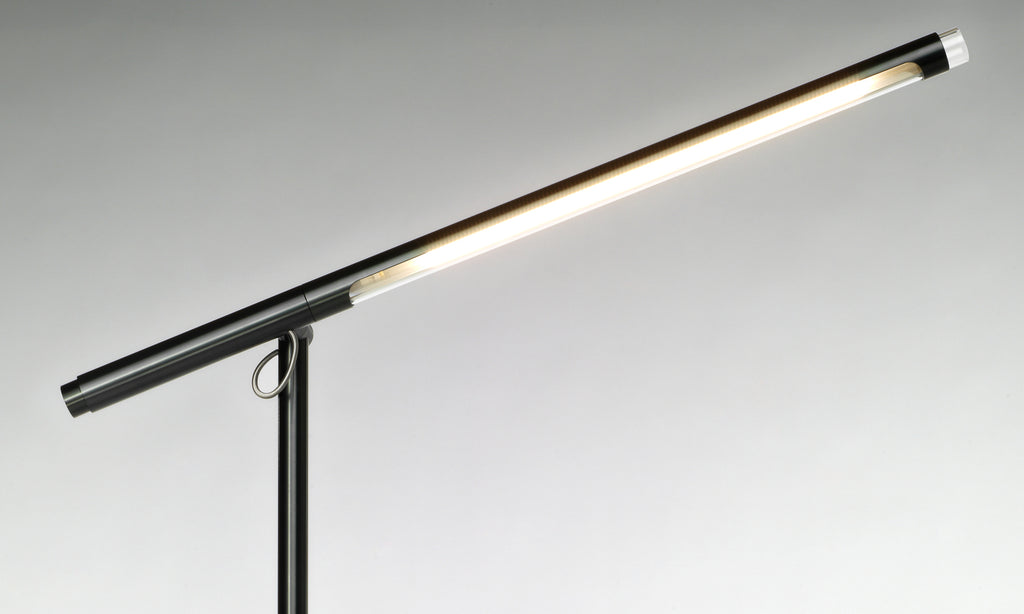

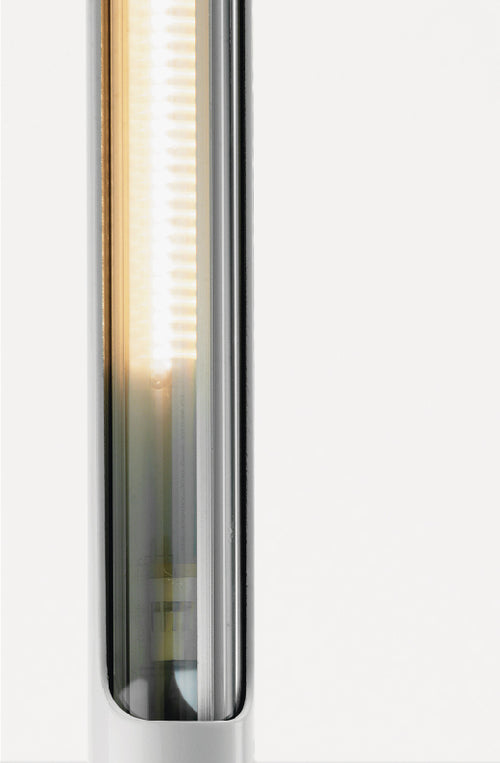

High-output LED Array

Brazo’s high-performance LED light source delivers bright, energy-efficient illumination with excellent clarity and consistency. Engineered for visual comfort, it produces smooth, even light ideal for focused tasks while maintaining a warm, inviting quality.

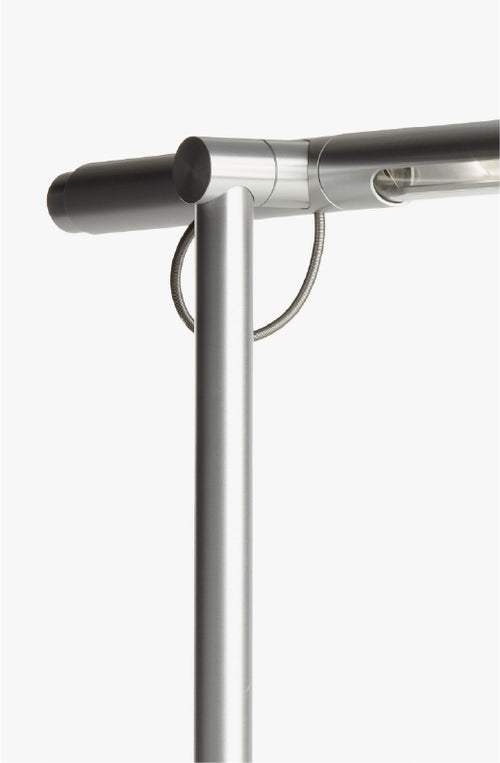

Precise Light Control

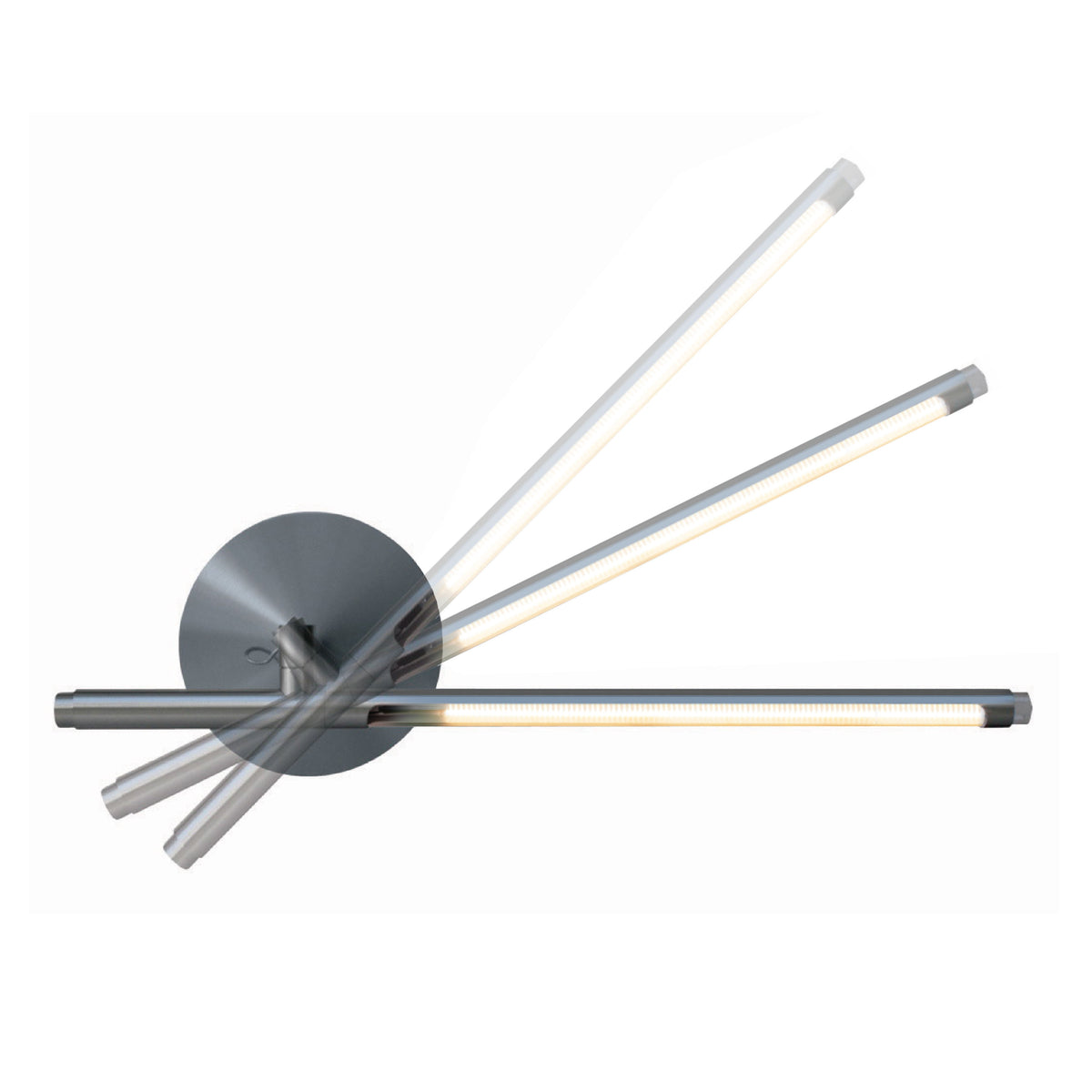

Brazo’s articulated design provides exceptional freedom of movement, with fluid, precise adjustment of height, reach, angle, orientation, and beam spread. Each movement is carefully calibrated for intuitive control, allowing light to be shaped, positioned, and directed with precision.

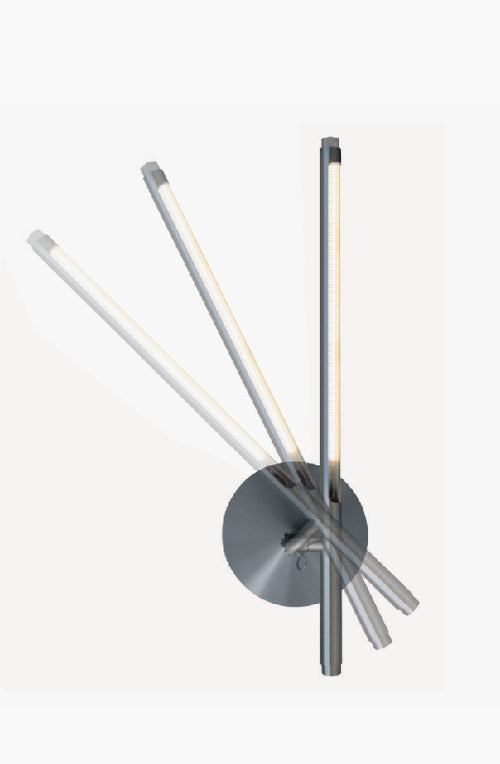

Calibrated Focus

Rotate the precision optical assembly to continuously adjust beam spread from focused task lighting to broad ambient illumination.

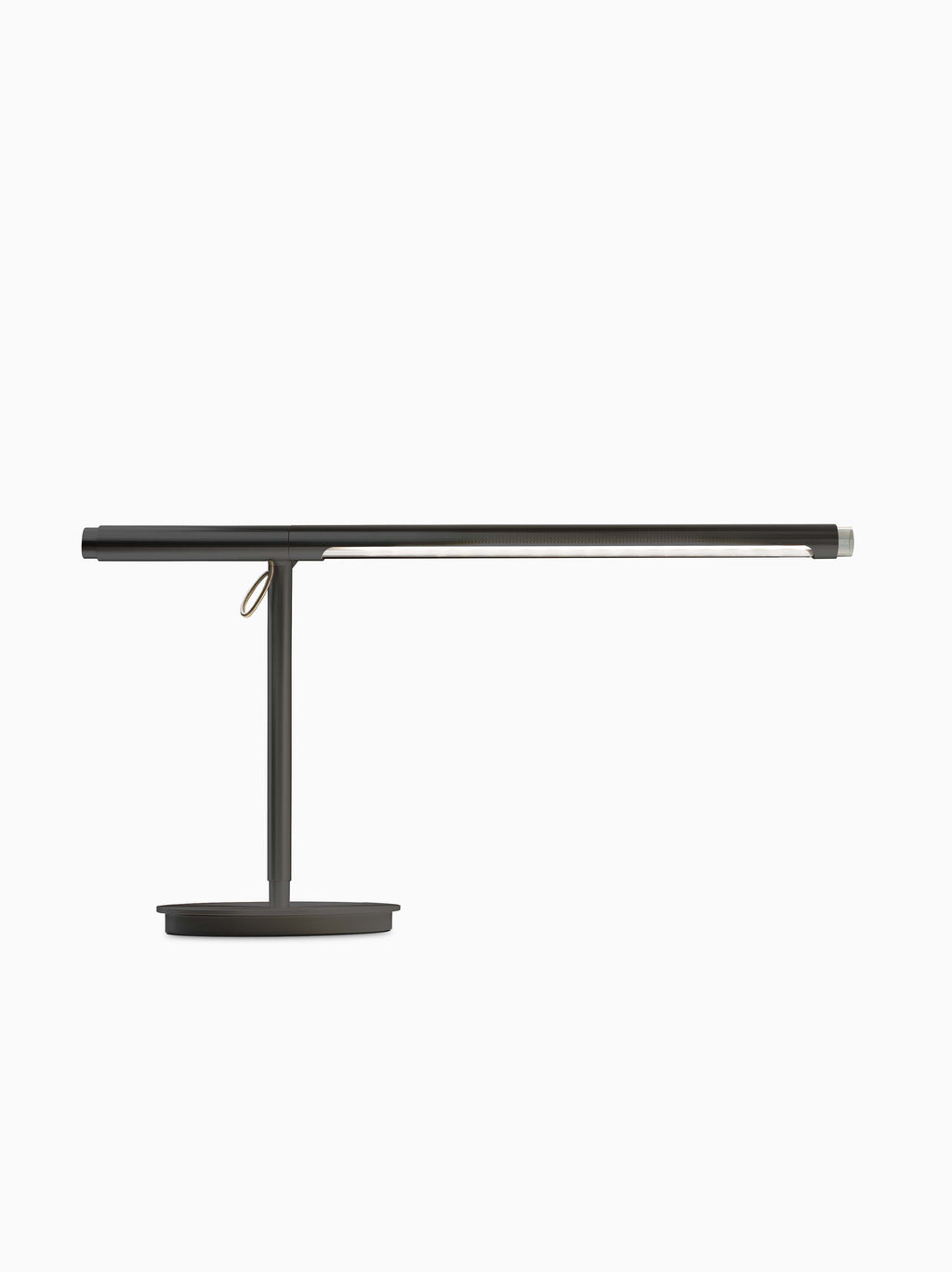

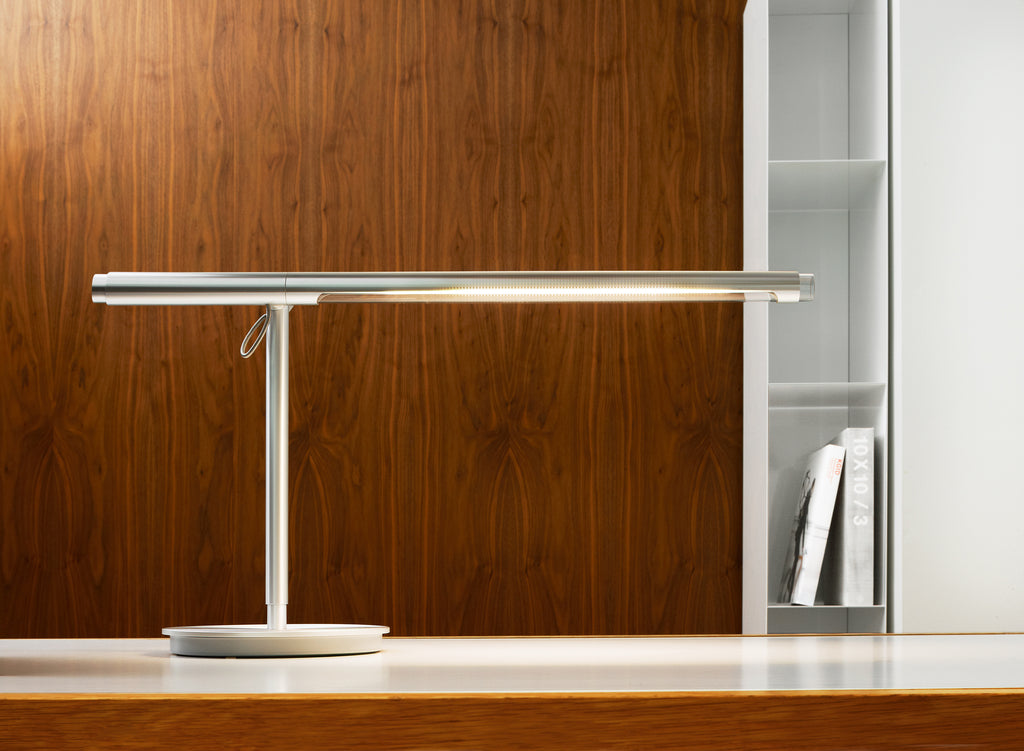

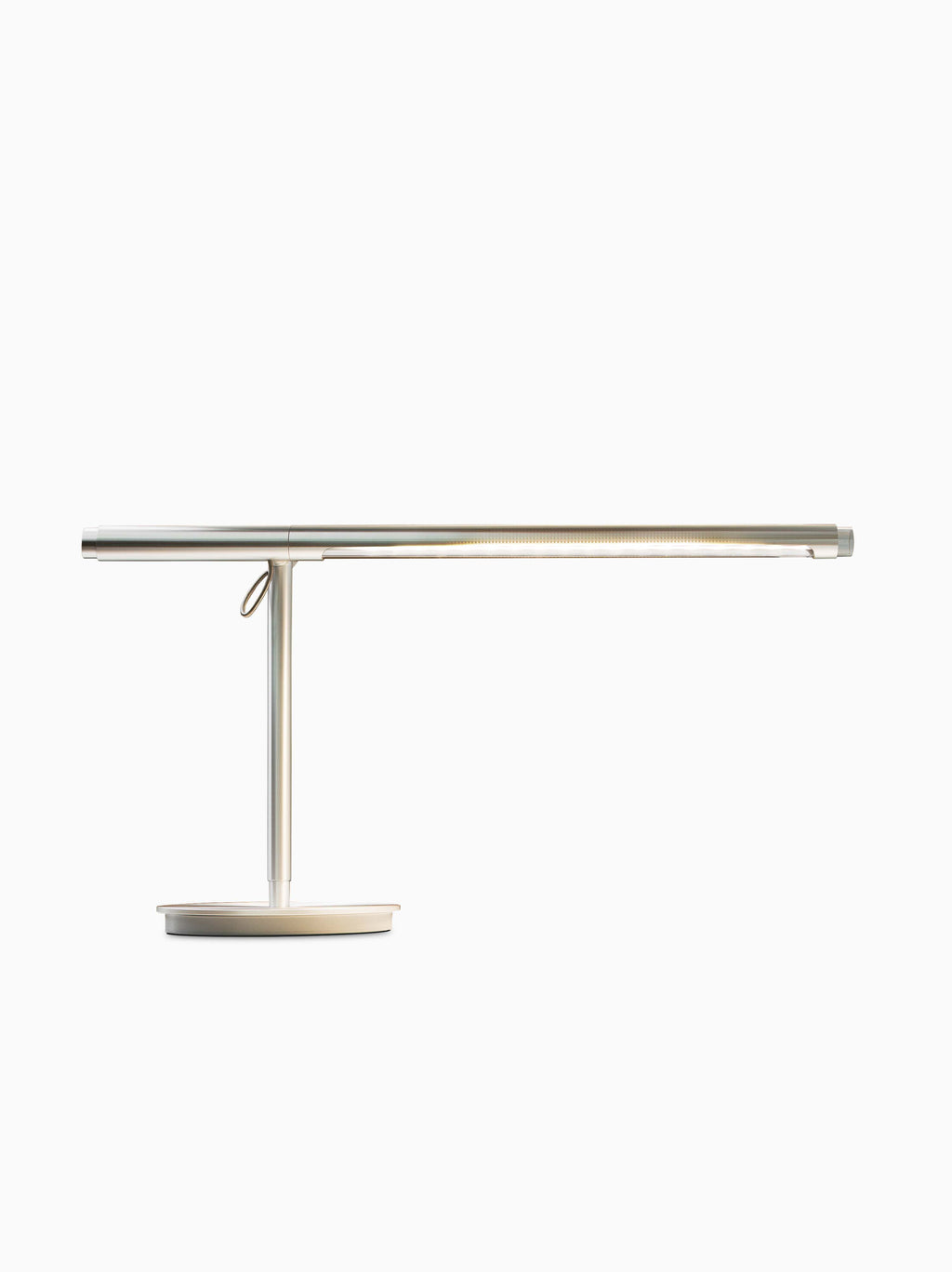

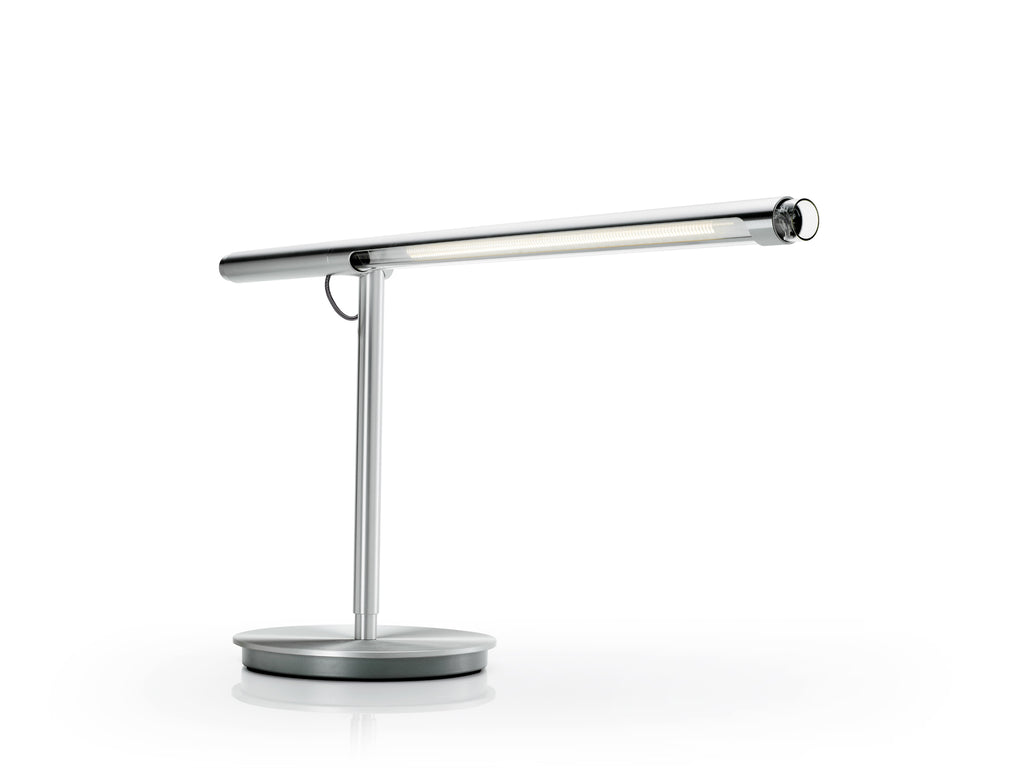

Brazo Table

Brazo Table

by Pablo Studio, 2006
Brazo’s precision machined aluminum construction allows for optimal task lighting control with 360° adjustability and 90° tilt. Brazo features a luminous and energy-efficient LED light source which can be dialed to any desired beam-spread and brightness depending on the task.

AWARDS: 2008 IDEA Gold Award, 2007 Best of Neocon Gold

Finish

In stock
$625.00
Jump to Specifications for full technical info
  • Technical Details
    High-output LED Array

    Brazo’s high-performance LED light source delivers bright, energy-efficient illumination with excellent clarity and consistency. Engineered for visual comfort, it produces smooth, even light ideal for focused tasks while maintaining a warm, inviting quality.

    Precise Light Control

    Brazo’s articulated design provides exceptional freedom of movement, with fluid, precise adjustment of height, reach, angle, orientation, and beam spread. Each movement is carefully calibrated for intuitive control, allowing light to be shaped, positioned, and directed with precision.

    Calibrated Focus

    Rotate the precision optical assembly to continuously adjust beam spread from focused task lighting to broad ambient illumination.
  • Specifications

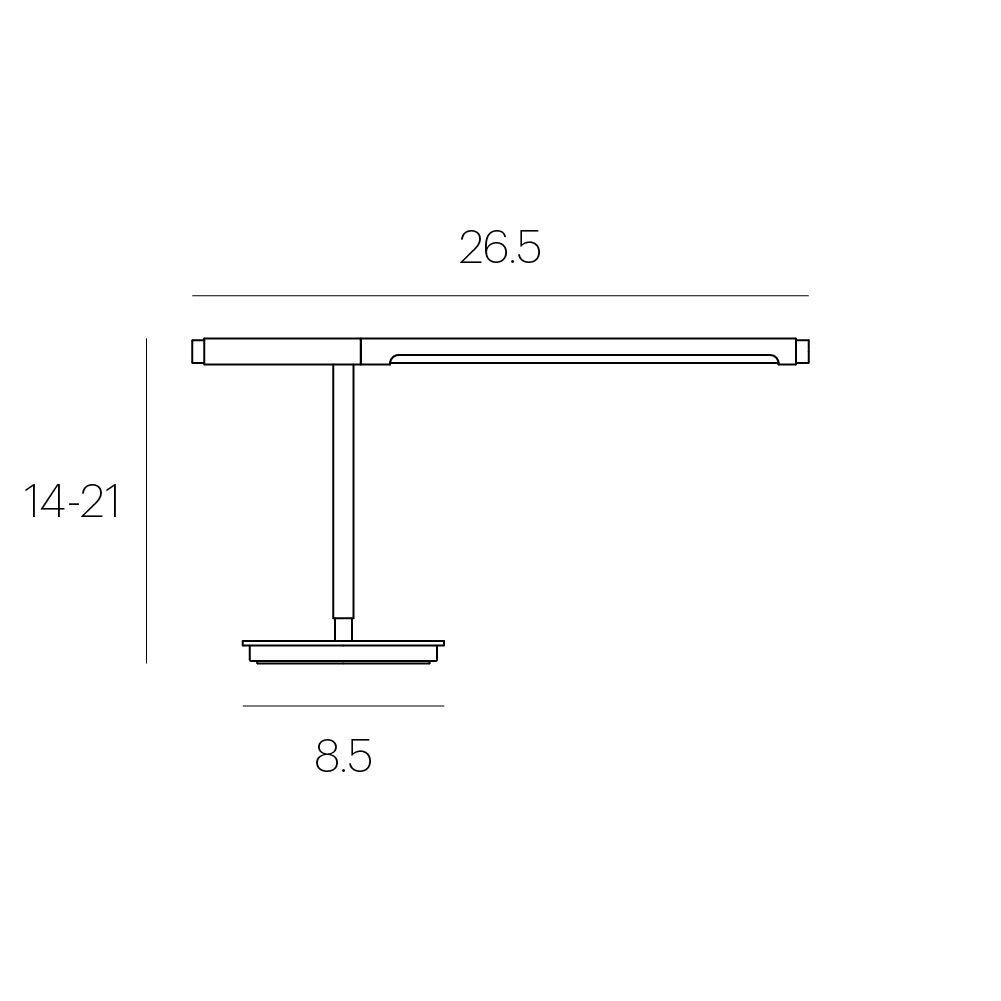

    Specifications

    Materials: CNC machined aluminum, Pyrex Glass.

    Voltage 120–240 V 60 Hz

    Power 9 W

    Light source (108x) High output LED array

    CCT 3000 K

    Lumens 400 lm

    Efficacy 43 lm/W

    CRI 85

    Dimming Full–range dim

    Controls Rotary dimmer

    LED lifespan 50 K hours

    Cord length 8 ft (244 cm)

    Bulb type (108x) High output LED array

    Certifications UL, CE, RoHS, PSE

  • Features

    360° Arm Rotation

    90 Arm Tilt

    Calibrated Light Focus Control

    Height Adjustable

    Advanced LED Array (eliminates multiple shadows)

    Full-range Dim

    Ships Flat-packed

    97% Recyclable

  • DOWNLOADS

    Spec Sheet

    Download PDF

    User Guide

    Download PDF

    3D Model

    Download STP

Pablo Pardo

Pablo Pardo is a Venezuelan-born industrial designer and founder of Pablo Designs, established in San Francisco in 1993. A 1986 graduate of the University of Cincinnati, his early work included product and automotive design for 3M, IDEO, Toylab and Chrysler. His lighting blends technical innovation with simplicity, tactility and warmth, creating objects that feel natural to use and reflect a commitment to permanence. His work has earned international awards, and Piccola is held in SFMOMA’s permanent collection.
